# map 6
# an alternate to map 1
# for the bottom of the page on map 7
library(terra)
library(ggplot2)
library(dplyr)
# library(raster)
library(sf)
# clean the environment and hidden objects
rm(list = ls())
# set map number
current_sheet <- 6
# set ggplot counter
current_ggplot <- 0
# make our ggtitles automagically #######
gg_labelmaker <- function(plot_num) {
gg_title <- c("Map:", current_sheet, " ggplot:", plot_num)
plot_text <- paste(gg_title, collapse = " ")
print(plot_text)
current_ggplot <<- plot_num
return(plot_text)
}
# every ggtitle should be:
# ggtitle(gg_labelmaker(current_ggplot+1))
# end automagic ggtitle #######
# vector layers
buildings <- st_read("source_data/campus_buildings/Campus_Buildings.shp")
bikeways <- st_read("source_data/icm_bikes/bike_paths/bikelanescollapsedv8.shp")
habitat <- st_read("source_data/NCOS_Shorebird_Foraging_Habitat/NCOS_Shorebird_Foraging_Habitat.shp")
iv_buildings <- st_read("source_data/iv_buildings/iv_buildings/CA_Structures_ExportFeatures.shp")
ncos_trails <- st_read("source_data/ncos_trails/ncos_multiuse_trails.geojson")
# rasters
# the background setup is bathymetry and topography mashed together
# this is worked through in map_01.r
# but we crop to just the main campus
campus_DEM <- rast("source_data/campus_DEM.tif")
campus_bath <- rast("output_data/campus_bath_epsg2874.tif")
campus_hillshade <- rast("source_data/campus_hillshade.tif")
# we will use the original projection of
# campus_DEM
# for whatever needs it to overlay:
campus_projection <- crs(campus_DEM)
buildings <- st_transform(buildings, campus_projection)
bikeways <- st_transform(bikeways, campus_projection)
habitat <- st_transform(habitat, campus_projection)
iv_buildings <- st_transform(iv_buildings, campus_projection)
ncos_trails <- st_transform(ncos_trails, campus_projection)
# ###################
# crop rasters to the extent of the main campus:
main_campus_extent <- ext(5998500, 6008500, 1973500, 1982500)
# Crop rasters:
campus_DEM_crop <- crop(campus_DEM, main_campus_extent)
campus_bath_crop <- crop(campus_bath, main_campus_extent)
campus_hillshade_crop <- crop(campus_hillshade, main_campus_extent)
# make dataframes
campus_DEM_df <- as.data.frame(campus_DEM_crop, xy = TRUE) %>%
rename(elevation = greatercampusDEM_1_1)
campus_bath_df <- as.data.frame(campus_bath_crop, xy = TRUE) %>%
rename(bathymetry = Bathymetry_2m_OffshoreCoalOilPoint)
campus_hillshade_df <- as.data.frame(campus_hillshade_crop, xy = TRUE)
## test vector overlays
#
# this is our first ggplot, so
# let's make reuse our
# our theme for the first time:
rAtlas_theme <- theme(
axis.title.x = element_blank(),
axis.title.y = element_blank(),
legend.position = "none",
panel.ontop = TRUE,
panel.grid.major = element_line(color = "#FFFFFF33"),
panel.background = element_blank()
)
ggplot() +
geom_sf(data = habitat) +
geom_sf(data = buildings) +
geom_sf(data = iv_buildings) +
geom_sf(data = bikeways) +
theme(rAtlas_theme) +
ggtitle(gg_labelmaker(current_ggplot + 1)) +
coord_sf()
############################
# now do what's necessary to plot the new
# closest-in #6 rasters together with the 4 vector layers
# let's apply our named theme from map_05
# Render main campus using the same viz as map 1:

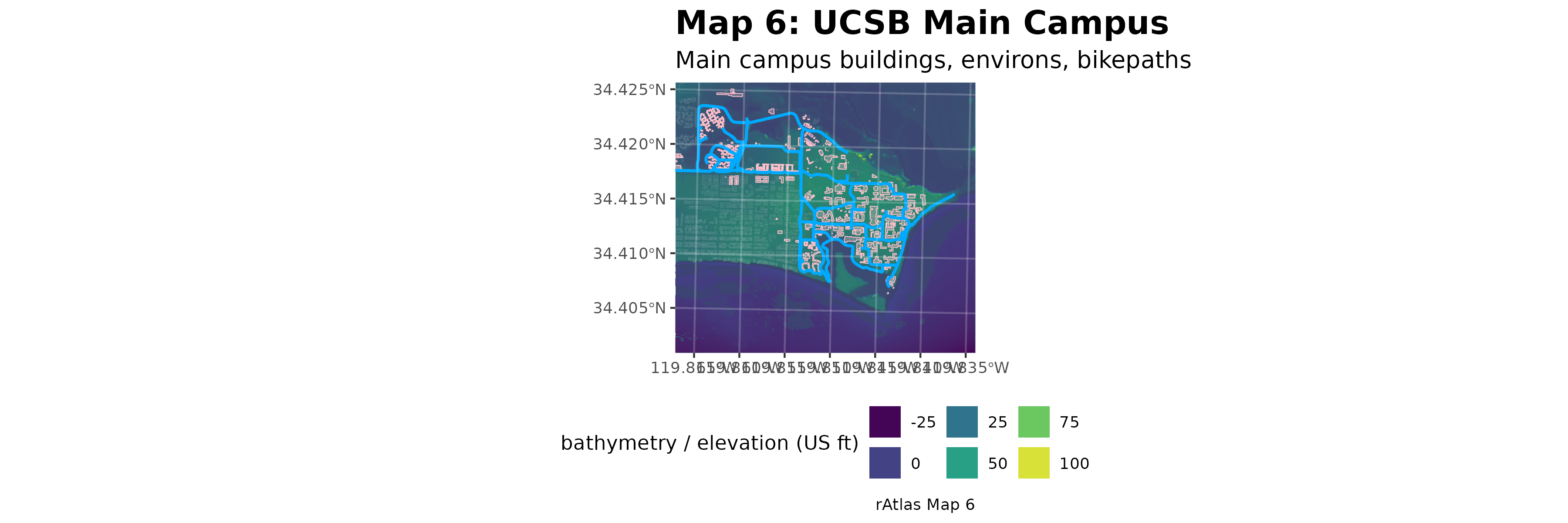

final_map6 <- ggplot() +
geom_raster(data = campus_DEM_df, aes(x = x, y = y, fill = elevation)) +
geom_raster(data = campus_hillshade_df, aes(x = x, y = y, alpha = hillshade), show.legend = FALSE) +
geom_raster(data = campus_bath_df, aes(x = x, y = y, fill = bathymetry)) +
scale_fill_viridis_c(na.value = "NA", guide = guide_legend("bathymetry / elevation (US ft)")) +
scale_alpha(range = c(0.05, 0.4), guide = "none") +
geom_sf(data = iv_buildings, color = alpha("light gray", 0.15), fill = NA) +
geom_sf(data = buildings, color = "pink", fill = alpha("pink", 0.3)) +
geom_sf(data = habitat, color = alpha("darkorchid1", 0.3), fill = alpha("darkorchid1", 0.1)) +
geom_sf(data = bikeways, color = "#00abff", linewidth = 0.8) +
geom_sf(data = ncos_trails, color = "#00abff", linewidth = 0.8) +
coord_sf(
xlim = c(main_campus_extent$xmin, main_campus_extent$xmax),
ylim = c(main_campus_extent$ymin, main_campus_extent$ymax),
expand = FALSE
) +
labs(
title = "Map 6: UCSB Main Campus",
subtitle = "Main campus buildings, environs, bikepaths",
caption = "rAtlas Map 6"
) +
rAtlas_theme +
theme(
plot.title = element_text(size = 18, face = "bold", hjust = 0),
plot.subtitle = element_text(size = 13, hjust = 0),
legend.position = "bottom"
)
final_map6
ggsave("images/map6.1.png", width = 12, height = 4, plot = final_map6, bg = "white")
ggsave("final_output/map_06.png", width = 12, height = 4, plot = final_map6, bg = "white")
